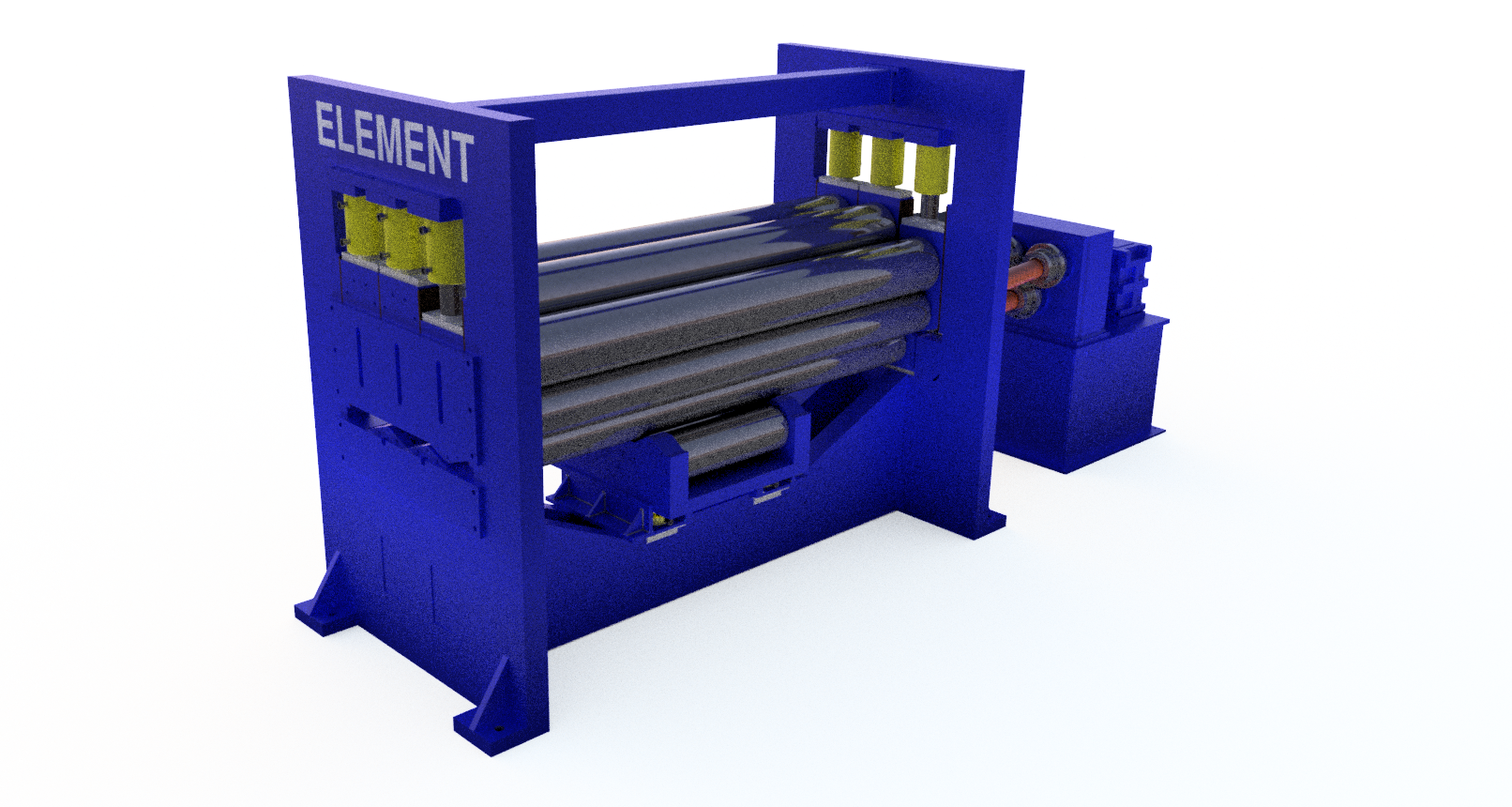

Plate Leveler

Plate levelers are typically used for leveling thin and heavy gauge materials. They typically have individual roll control (position/force) and individual roll drive. With closed loop positioning control it allows for generating machine setting recipes for common plate runs.

Plate Leveler Equipment options

With any Element Levelers, we offer several options that are available to increase the productivity of your equipment. Some of the options that we offer to maximize the capacity of our levelers include:

  • Stacking sections are available to stack leveled plates into bundles for shipment.
  • Variable roll geometry options are available to provide additional bending capabilities.
  • Closed loop positioning control allows for generating machine setting recipes for common plate runs.

Plate Leveler Experience

Element has supplied roll combination plate levelers between 3-roll and 8-roll arrangement designs.

A leveler can be used to remove flatness defects from many different materials. Element Machinery has built levelers for correction of flatness defects in materials. The yield strength of the material also determines the over all size of machine necessary.

MINIMUM
MAXIMUM
Material Thickness 0.063″ (1.588 mm) 6″ (152.4 mm)
Material Width 1″ (25.4 mm) 144″ (3,658 mm)
Coil Weight 500 lbs (228 kg) 100,000 lbs (45,359 kg)
Separating Force 50 UST (45 MT) 6,000 UST (5,443 MT)
Line Speed 50 FPM (15 MPM) 200 FPM (61 MPM)

Our Levelers have met a wide variety of requirements across multiple applications.  As a result, they have also been established in many different industries and have been supplied with many options, such as:

CONTROL OPTIONS
PLATE MATERIAL
INDUSTRIES SERVED
  • All PLC Platforms
  • Allen Bradley
  • Siemens
  • ABB
  • Steel
  • Stainless Steel
  • Aluminum
  • Copper/Brass
  • Integrated Mills
  • Mini Mills
  • Aerospace/Military
  • Manufacturing
  • Service Centers
  • Construction
TOLERANCES
MATERIALS
Levelers remove defects from material, and also raise the classification of material to an industry standard. These standards support downstream processing of the material and ensure consistent quality. These industry standards identify tolerances on flattened product, and include:

Some advanced features Element has supplied in the past include:

  • Steel
  • Stainless Stee

WHAT WE OFFER

PLATE LEVELER

Plate levelers flatten both thin and heavy gauge materials. They typically have individual roll adjustment with closed loop control (position/force), therefore allowing for generating machine setting recipes to make operator’s jobs easier.  Furthermore, each roll may be driven through a distribution box or individual drives.

CORRECTIVE LEVELER

Corrective levelers straighten thinner materials and have bank-type adjustment of work rolls.  They are also equipped with multiple flights of backup rolls. In order to correct minor strip shape defects, roll bending is similarly made possible by adjusting the backup flights.

TENSION LEVELER

Tension levelers level material by stretching it into plastic deformation. In order to achieve the high amounts of tension necessary, a tension leveler utilizes bridle rolls to isolate tension for leveling.  The bridle roll design also allows for controlling tension at upstream and downstream coilers.
